About Type N

Type N was designed to become a worldwide plug standard, but its use remains largely limited to Brazil and South Africa. Brazil uses 10A and 20A versions. South Africa uses a newer 16A version, while older Type M sockets are still common.

Compatibility

Type N Plugs Fit In

N

Type N Sockets Accept

C

Adapter Needed For

A B E F G I

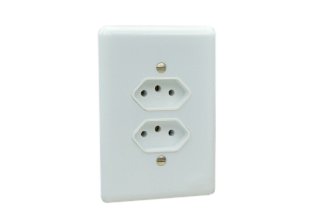

Type N sockets accept Type C (Europlug) for appliances that do not require grounding. Brazil uses 10A and 20A versions; South Africa uses a 16A version. Check that your plug or adapter matches the local socket version and the appliance rating.

Countries Using Type N Plug

2 countries

2 primary

Type N was designed to become a worldwide plug standard, but its use remains largely limited to Brazil and South Africa. Brazil uses 10A and 20A versions. South Africa uses a newer 16A version, while older Type M sockets are still common.

Americas (1)

Africa (1)

Other Plug Types

Frequently Asked Questions

A Type N plug is a grounded plug with three round pins, used in Brazil and South Africa. Brazil uses 10A and 20A versions under NBR 14136; South Africa uses a 16A version under SANS 164-2. The local supply voltage depends on the country and location, so check it separately from the plug type.

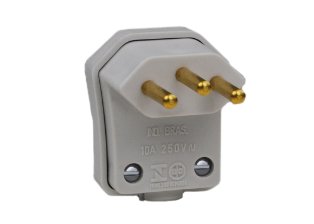

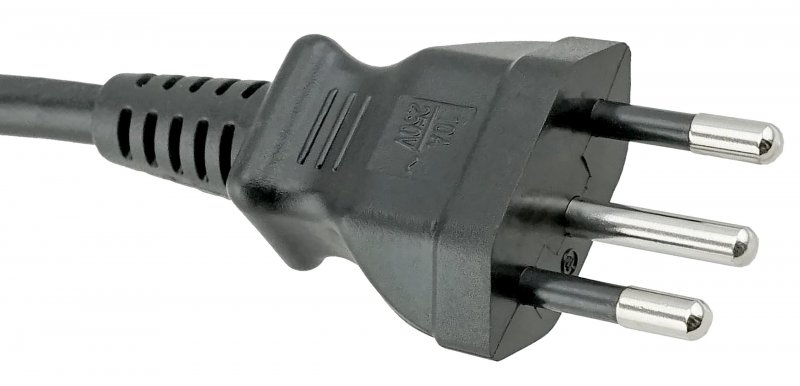

A Type N plug has three round pins, with the earth pin offset from the two power pins to form a shallow triangle. Brazil has 10A and 20A versions with different pin diameters. South Africa uses a 16A version. The versions are not all interchangeable.

Type N plugs are used in Brazil and South Africa. Brazil uses the NBR 14136 standard in 10A and 20A versions. South Africa uses the 16A SANS 164-2 standard, based on IEC 60906-1, alongside older socket types.

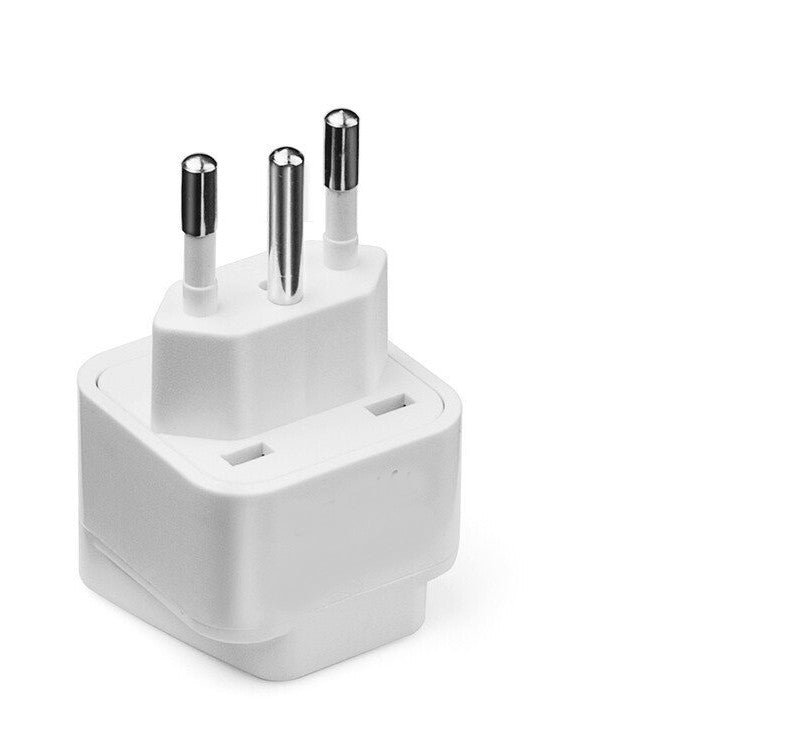

Type C plugs can often work in Brazilian Type N sockets, especially the 10A version which has the same 4mm pin diameter. However, for guaranteed compatibility and grounded connections, a Type N adapter is recommended when traveling to Brazil.
